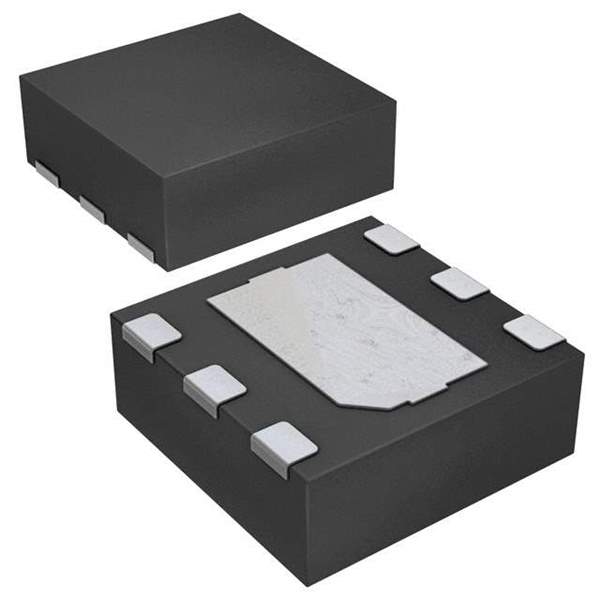

PE42424A-Z Real Image
Same model may have multiple batches, images only for reference.

PE42424A-Z

Part No PE42424A-Z
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 50OHM 6DFN
Datasheet
PE42424A-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 6GHz
Isolation @ Frequency 48dB @ 2.4GHz (typ)
Insertion Loss @ Frequency 0.8dB @ 2.5GHz
IIP3 61dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 41dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C to 105°C
Supply Voltage - Operating 2.3 V to 5.5 V
RF Type 802.11a/b/g/n/ac
Case / Package 6-DFN (1.5x1.5)
Win Source Part Number 1087287-PE42424A-Z
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE42424A-Z CAD Model

Description

The Peregrine Semiconductor PE42424A-Z is an electronic component with a medium popularity in the market and a balanced supply and demand status.

  • Manufacturer: Peregrine Semiconductor
  • Win Source Part Number: 1087287
  • Category: RF/IF and RFID
  • Impedance: 50 Ohm
  • Circuit: SPDT
  • Topology: Reflective
  • Frequency Range: 100MHz to 6GHz
  • Isolation @ Frequency: 48dB @ 2.4GHz (typ)
  • Insertion Loss @ Frequency: 0.8dB @ 2.5GHz
  • Status: Active
