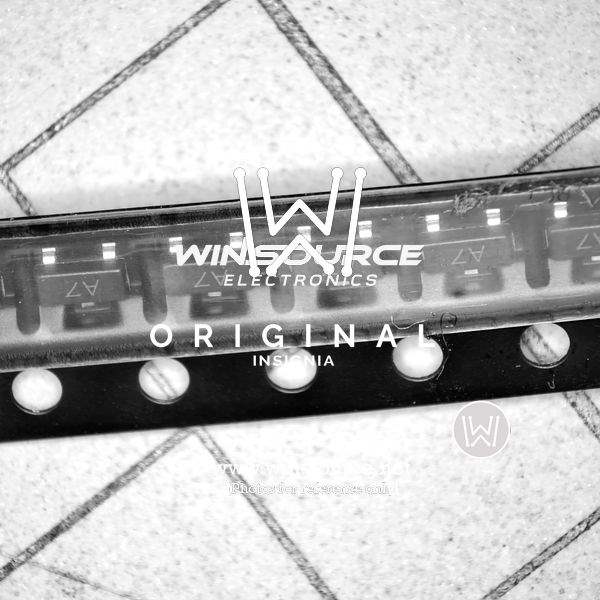

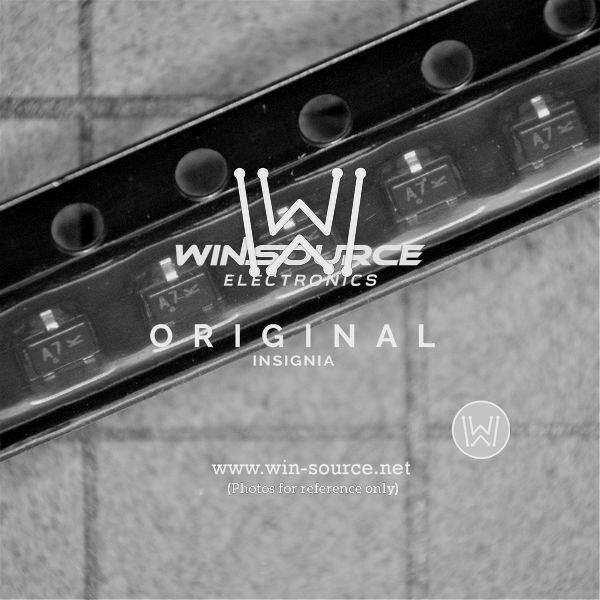

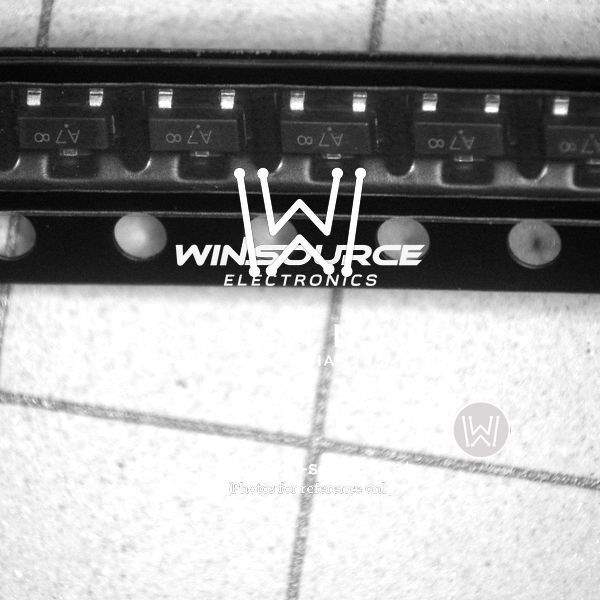

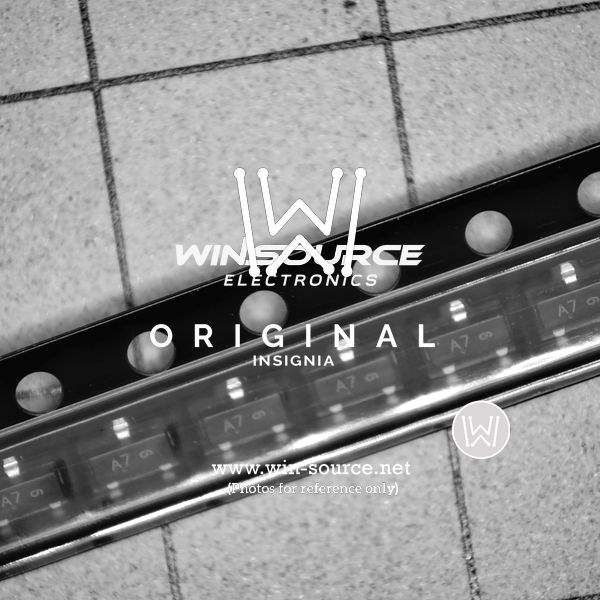

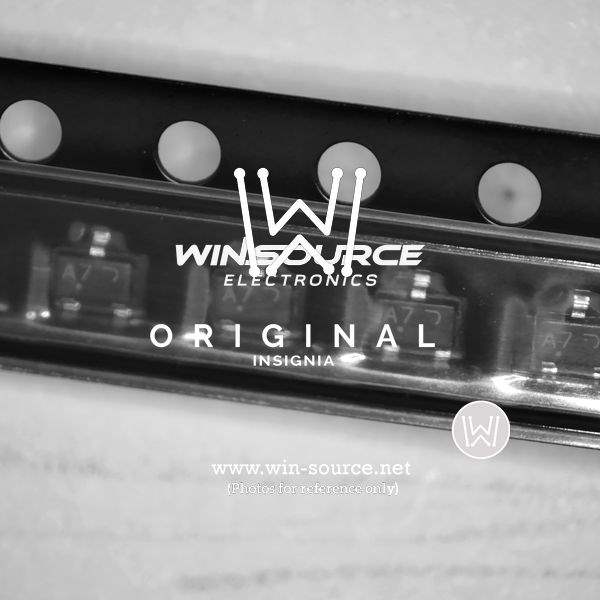

Product Overview: BAV99LT1G from ON Semiconductor

The BAV99LT1G is a high-performance, dual series switching diode array that is designed to meet a wide range of requirements in various electronic applications. Manufactured by ON Semiconductor, a leader in energy-efficient innovations, this product is a testament to the company's commitment to providing reliable and robust components for the electronics industry.

Key Features

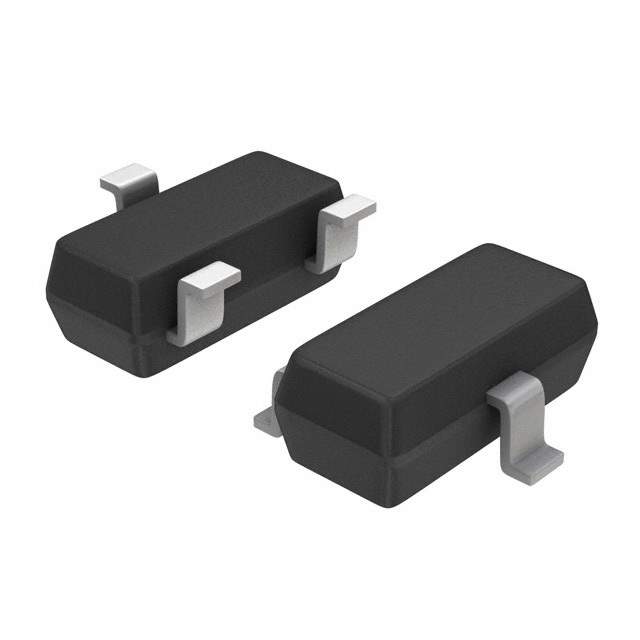

• Diode Configuration: The BAV99LT1G contains two series diodes in a single SOT-23 package, allowing for high-density mounting and a reduction in board space.
• Fast Switching Speed: With its fast switching speed, this diode array is ideal for high-speed switching applications, ensuring minimal signal delay and high efficiency.
• Low Leakage Current: The device exhibits a low leakage current, which enhances its performance in applications where power efficiency is critical.
• High Voltage Rating: It has a reverse voltage rating of 70V, making it suitable for a variety of applications that require a high breakdown voltage.
• Pb-Free and RoHS Compliant: The BAV99LT1G is lead-free and complies with the RoHS directive, making it an environmentally friendly choice for electronic manufacturers.

Applications

The versatile nature of the BAV99LT1G makes it suitable for a broad range of applications, including:

• High-speed switching in digital circuits
• Signal multiplexing
• Clamping and protection circuits
• Voltage doubling circuits
• Logic gates

Quality and Reliability

ON Semiconductor ensures that each BAV99LT1G diode array is rigorously tested for quality and reliability. Customers can trust that this product will perform consistently across various conditions and over an extended period.

Technical Specifications

For engineers and designers looking for a reliable switching solution, the BAV99LT1G from ON Semiconductor offers a perfect blend of performance, efficiency, and compactness, making it a valuable addition to any electronic design project.
