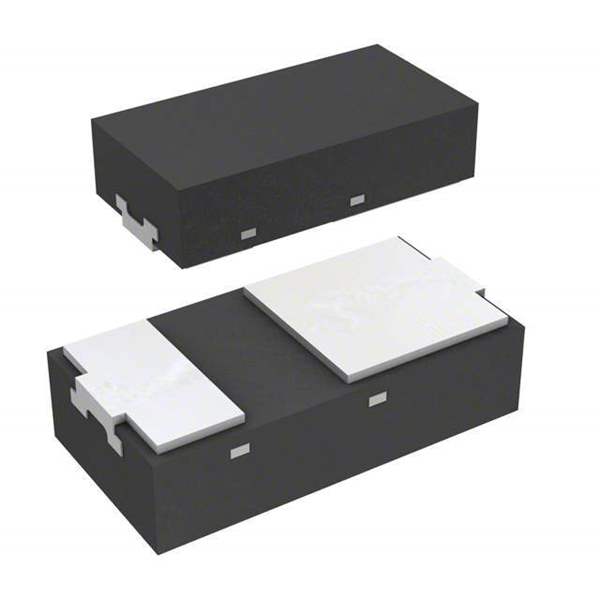

PMEG4015EPK,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG4015EPK,315

Part No PMEG4015EPK,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 40V 1.5A 4ns Automotive 2-Pin DFN-D T/R / DIODE SCHOTTKY 40V 1.5A 2DFN
Datasheet
PMEG4015EPK,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 610mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 5μA @ 10V
Capacitance @ Vr, F 90pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1608D-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089625-PMEG4015EPK,315
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name PMEG4015EPK
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PMEG4015EPK,315 CAD Model

Description

The Nexperia USA Inc. PMEG4015EPK,315 is a Schottky Diode designed for use in Discrete Semiconductor Products.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 1.5A
  • Forward Voltage (Vf): 610mV @ 1.5A
  • Reverse Recovery Time (trr): 4ns
  • Mounting Technology: SMD (SMT)
  • Package: DFN1608D-2
  • Maximum Power Dissipation: 300mW
  • Application: power management
  • Supply: sufficiently supplied in the market
