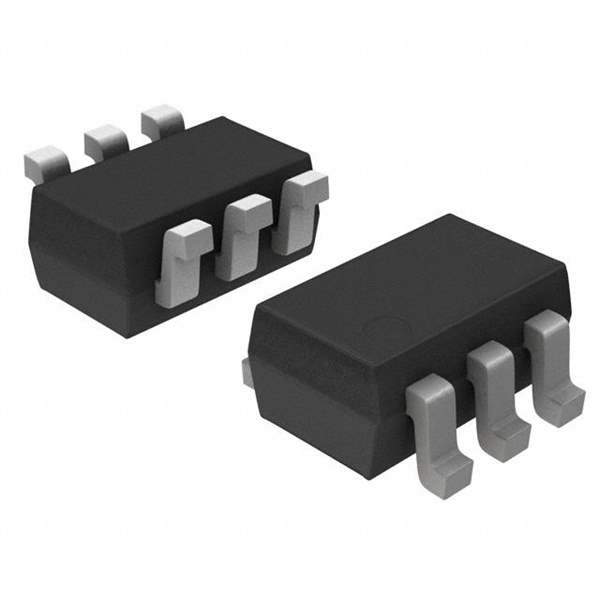

BAT54SW,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT54SW,115

Part No BAT54SW,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
BAT54SW,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-323-3
Win Source Part Number 1022178-BAT54SW,115
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Test & Measurement, Safety
Ultra Librarian 3D Model Ultra Librarian BAT54SW,115 CAD Model

Description

The Nexperia USA Inc. BAT54SW,115 is a Schottky diode that comes in a SMD (SMT) mounting package.

  • Manufacturer: Nexperia USA Inc.
  • Mounting Type: SMD (SMT)
  • Maximum DC Reverse Voltage (Vr): 30V DC
  • Forward Voltage (Vf): 800mV @ 100mA
  • Diode Configuration: 1 pair series connection
  • Reverse Recovery Time (trr): 5ns
  • Applications: Power management, test & measurement, and safety applications
  • Reverse Leakage Current: 2μA @ 25V
  • Average Rectified Current (Io): 200mA (DC)
  • Operating Temperature: Up to 150°C (Max)
  • Case/Package: SOT-323-3
  • Popularity: Popular in the market
