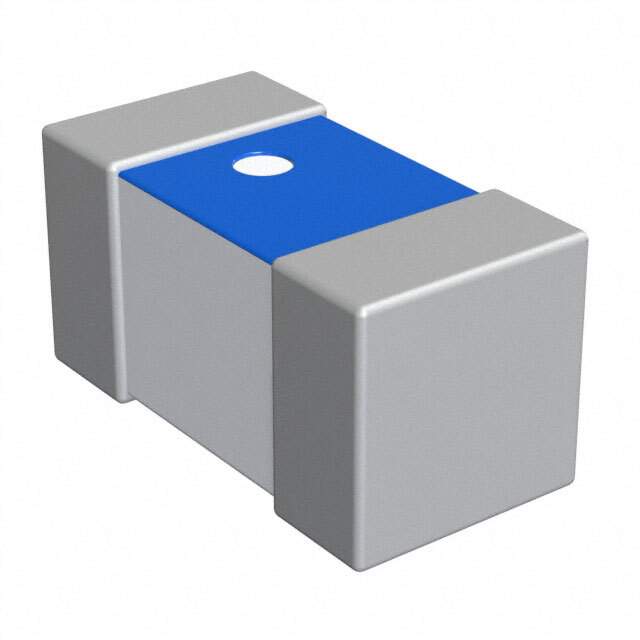

LQP03TN1N5B02D Real Image1 LQP03TN1N5B02D Real Image2
LQP03TN1N5B02D Real Image1 LQP03TN1N5B02D Real Image2
Same model may have multiple batches, images only for reference.

LQP03TN1N5B02D

Part No LQP03TN1N5B02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1.5NH 600MA 150 MOHM
Datasheet
LQP03TN1N5B02D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 1.5nH
Tolerance ±0.1nH
Current Rating 600mA
DC Resistance (DCR) 150 mOhm Max
Q @ Freq 14 @ 500MHz
Frequency - Self Resonant 15GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Height - Seated (Max) 0.013" (0.33mm)
Win Source Part Number 1057313-LQP03TN1N5B02D
Popularity Medium
Supply and Demand Status Balance
Application Field Used in RF Communications, Power Management, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian LQP03TN1N5B02D CAD Model

Description

The Murata Electronics North America LQP03TN1N5B02D is a thin film inductor with a current rating of 600mA and an inductance of 1.5nH.

  • Current Rating: 600mA
  • Inductance: 1.5nH
  • Height: 0.013" (0.33mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±0.1nH
  • Core Material: Non-Magnetic
  • Q @ Freq: 14 @ 500MHz
  • Frequency - Self Resonant: 15GHz
  • Applications: RF Communications, Power Management, Consumer Electronics, and Industrial applications
  • DC Resistance (DCR): 150 mOhm Max
  • Operating Temperature: -55°C to 125°C
  • Package: 0201 (0603 Metric)
  • Status: Active
  • Supply and Demand Status: Balanced
