The MCP6L04T-E/SL is a high-performance operational amplifier (op-amp) developed by Microchip Technology, a leader in microcontroller and analog semiconductors. This op-amp is part of the MCP6L0x series, which is renowned for its low power consumption and general-purpose applications.

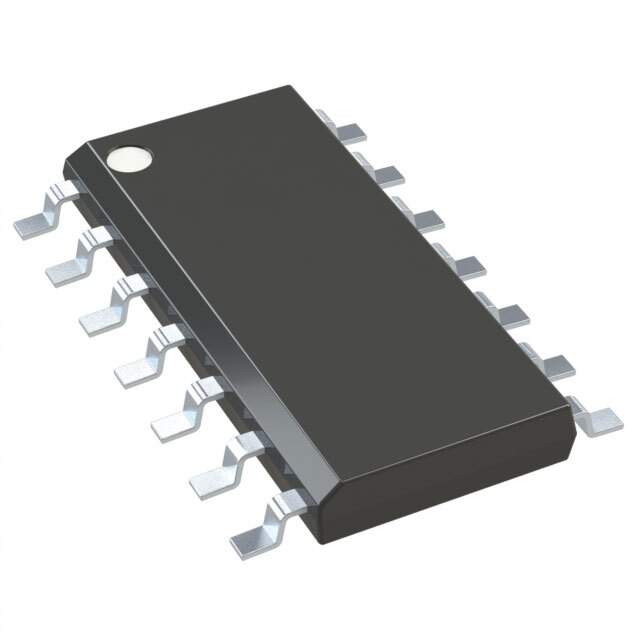

Featuring a quad configuration, the MCP6L04T-E/SL offers four amplifiers integrated into a single 14-pin SOIC package, making it an efficient choice for space-constrained applications. The device operates over a wide voltage range of 2.1V to 5.5V, allowing for flexibility in both single-supply and dual-supply modes, making it suitable for battery-operated applications and standard 5V systems.

With a gain bandwidth product of 1 MHz, the MCP6L04T-E/SL is capable of handling a wide range of frequencies, which makes it ideal for analog filters, sensor signal conditioning, and other applications requiring low-frequency amplification. The op-amp also boasts a low typical quiescent current of 100 µA per amplifier, which helps to reduce power consumption and extend battery life in portable devices.

The MCP6L04T-E/SL has a Rail-to-Rail output swing, which provides the maximum possible dynamic range at the output. This feature is particularly important when operating at low supply voltages, ensuring that the output can swing close to the supply rails, maximizing the signal amplitude.

The operational amplifier is designed with Microchip's advanced CMOS process, which provides a PSRR (Power Supply Rejection Ratio) and CMRR (Common Mode Rejection Ratio) that are excellent for many applications. Additionally, the device features extended temperature range operation from -40°C to +125°C, offering reliable performance in a variety of environmental conditions.

Whether you're designing consumer electronics, industrial control systems, or medical devices, the MCP6L04T-E/SL from Microchip Technology is a versatile and reliable choice that combines performance with low power consumption.
