Maxim Integrated MAX192BCWP+ Product Overview

The MAX192BCWP+ from Maxim Integrated is a high-performance, low-power, 10-bit analog-to-digital converter (ADC) that offers a unique combination of features, making it ideal for a variety of applications in industrial, medical, and consumer electronics. This ADC is part of Maxim's commitment to providing advanced integrated solutions that meet the needs of today's sophisticated electronic systems.

Key Features

• 10-Bit Resolution: The MAX192BCWP+ provides a 10-bit resolution, which allows for fine-grained data conversion, ensuring accurate representation of the analog signal.
• High Conversion Rate: With a conversion rate of up to 133ksps (kilo-samples per second), this device is suitable for high-speed applications that require quick data acquisition.
• Single Supply Operation: The ADC can operate from a single +5V supply, simplifying power supply design and reducing system power requirements.
• Low Power Consumption: It is designed for low power consumption, making it an excellent choice for battery-operated devices and power-sensitive applications.
• Internal Track/Hold: The inclusion of an internal track/hold function eliminates the need for external components, reducing system complexity and saving board space.
• SPI/QSPI/MICROWIRE Compatible: The device features an SPI/QSPI/MICROWIRE compatible serial interface, ensuring easy integration with most microcontrollers and digital systems.

Applications

The MAX192BCWP+ is versatile and can be used in a wide range of applications, including:

• Data Acquisition Systems
• Portable Instrumentation
• Medical Devices
• Process Control
• Battery-Powered Devices
• Motor Control

Package and Reliability

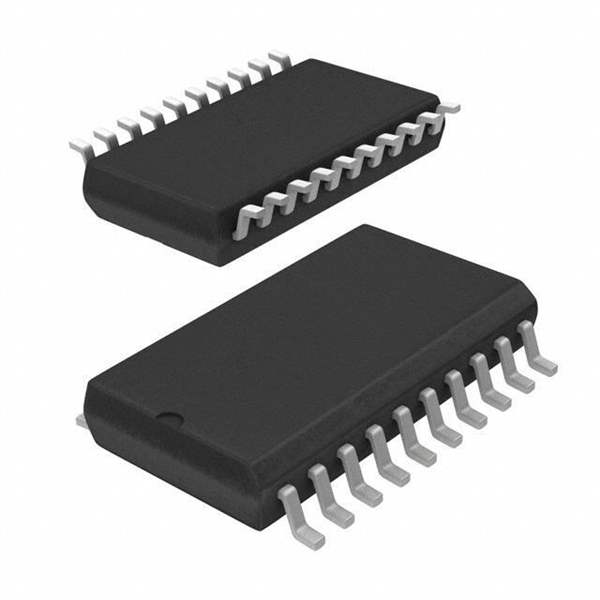

The MAX192BCWP+ is available in a 20-SOIC W package, which is suited for surface-mounted technology, offering a compact footprint for space-constrained applications. Maxim Integrated ensures high reliability and performance of the MAX192BCWP+, making it a dependable choice for your critical system requirements.

With its robust feature set and high reliability, the MAX192BCWP+ ADC from Maxim Integrated is an excellent choice for designers looking to enhance the performance and efficiency of their electronic systems.
