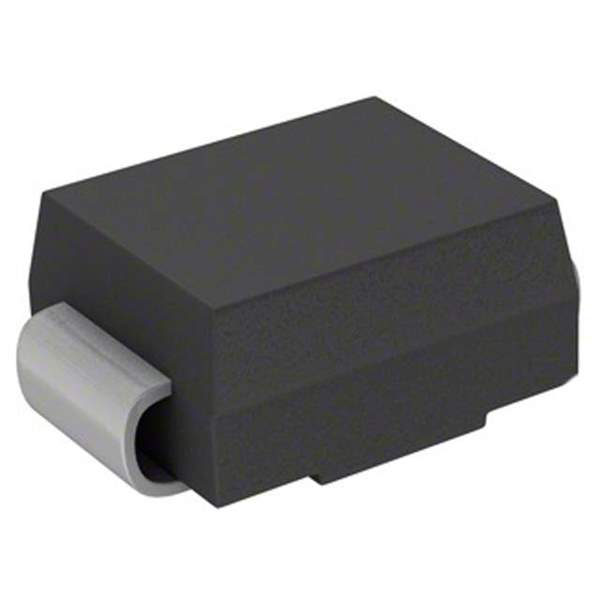

SMBJ64A Real Image
Same model may have multiple batches, images only for reference.

SMBJ64A

Part No SMBJ64A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 64VWM 103VC DO214AA
Datasheet
SMBJ64A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMBJ
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 64V
Voltage - Breakdown (Min) 71.1V
Voltage - Clamping (Max) @ Ipp 103V
Current - Peak Pulse (10/1000µs) 5.9A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Base Product Number SMBJ64
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 668841-SMBJ64A
Ultra Librarian 3D Model Ultra Librarian SMBJ64A CAD Model

Description

The SMBJ64A is a Zener type transient voltage suppressor diode designed to protect electronic circuits against transients and overvoltage threats.

  • Series: SMBJ
  • Package: DO-214AA (SMB)
  • Mounting Type: Surface Mount
  • Reverse Standoff Voltage: 64V
  • Breakdown Voltage: 71.1V
  • Clamping Voltage @ Peak Pulse Current (Ipp): 103V
  • Peak Pulse Power: 600W
  • Channel: Unidirectional
  • Packaging: Tape and Reel
  • Pieces per Package: 3,000
  • Operating Temperature: -65°C to 150°C (TJ)
  • Manufacturer: Littelfuse Inc.
  • Status: Active
