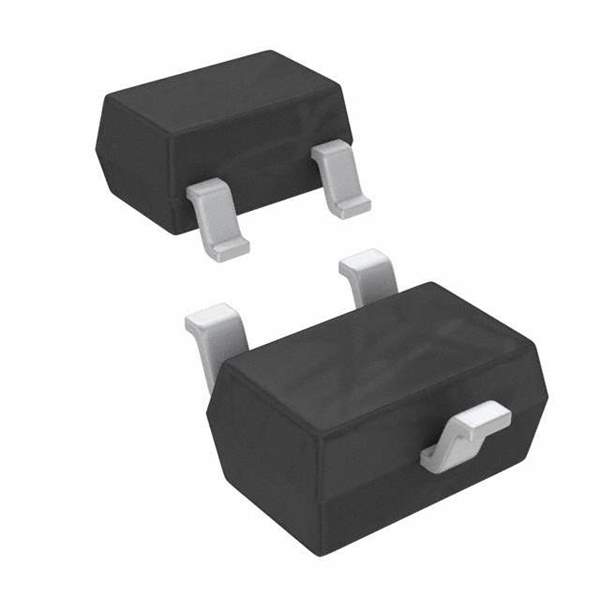

ESD1P0RFWH6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

ESD1P0RFWH6327XTSA1

Part No ESD1P0RFWH6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 70VWM 15VC SOT323
Datasheet
ESD1P0RFWH6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 70V (Max)
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 10A (8/20μs)
Applications Ethernet, HDMI, RF Antenna
Capacitance @ Frequency 1pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-SOT323-3
Win Source Part Number 114336-ESD1P0RFWH6327XTSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESD1P0RFWH6327XTSA1 CAD Model

Description

ESD1P0RFWH6327XTSA1

The ESD1P0RFWH6327XTSA1 is engineered to provide exceptional protection against electrostatic discharge, ensuring the integrity and durability of advanced electronic systems.

  • Features:
    • Low-leakage current
    • Ultra-low capacitance
    • Excellent performance in high-frequency applications
  • Benefits:
    • Prevents data errors and signal degradation
    • Reduces electronic downtime
    • Compatible with ever-evolving technology
  • Applications:
    • Laptops
    • Digital cameras
    • Telecommunication equipment
  • Additional Details:
    • Capacitance: 1.0 pF
    • ESD protection: Up to ±15kV
