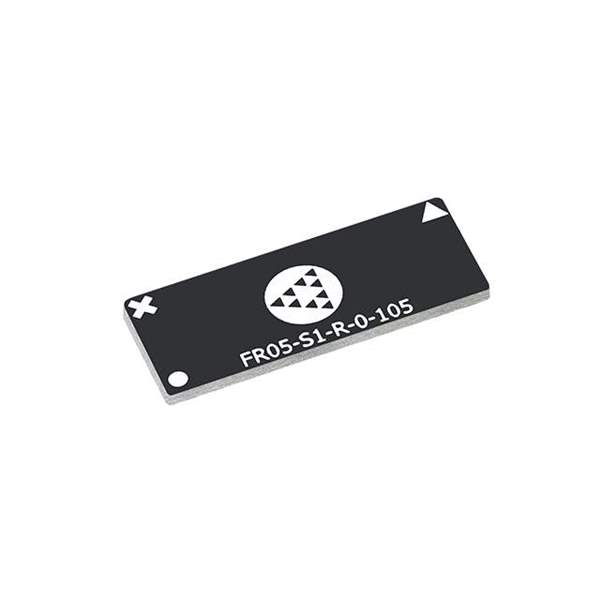

FR05-S1-R-0-105 Real Image
Same model may have multiple batches, images only for reference.

FR05-S1-R-0-105

Part No FR05-S1-R-0-105
Manufacturer Ignion (formerly Fractus)
Catalog RF Antennas
Description EZCONNECT - 105
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features 868MHz, 915MHz ISM, Zigbee™ Chip RF Antenna 902MHz ~ 928MHz 2.3dBi, 1.7dBi Solder Surface Mount
Manufacturer Ignion (formerly Fractus)
Series EZConnect™
Package Reel - TR
Mounting Surface Mount
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number 2115-FR05-S1-R-0-105CT, 2115-FR05-S1-R-0-105DKR, 2115-FR05-S1-R-0-105TR
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872254-FR05-S1-R-0-105
Ultra Librarian 3D Model Ultra Librarian FR05-S1-R-0-105 CAD Model

Description

The Ignion (formerly Fractus) EZConnect™ is a Zigbee™ Chip RF Antenna with a frequency range of 868MHz to 915MHz ISM.

  • Gain: 2.3dBi and 1.7dBi for 902MHz to 928MHz
  • Mounting Type: Surface Mountable
  • Package: Reel
  • Status: Discontinued at Digi-Key
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 2500
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8529.10.9100
  • Other Part Numbers: 2115-FR05-S1-R-0-105CT, 2115-FR05-S1-R-0-105DKR, 2115-FR05-S1-R-0-105TR
