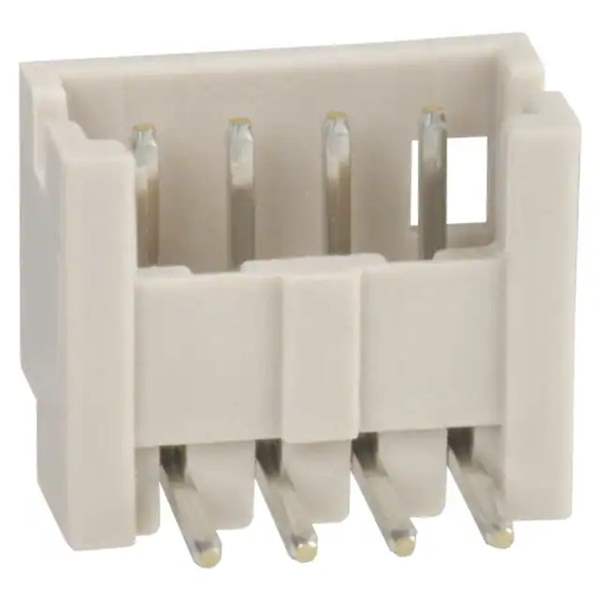

DF13-4P-1.25DS(20) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF13-4P-1.25DS(20)

Part No DF13-4P-1.25DS(20)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 1.25MM / Connector Header Through Hole, Right Angle 4 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length -
Insulation Height 0.142" (3.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number DF13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1354812-DF13-4P-1.25DS(20)
Ultra Librarian 3D Model Ultra Librarian DF13-4P-1.25DS(20) CAD Model

Description

The DF13-4P-1.25DS(20) is a rectangular connector header from Hirose Electric Co Ltd with male pin contacts.

  • Number of Positions: 4
  • Number of Rows: 1
  • Pitch: 0.049" (1.25mm)
  • Mounting Type: Through Hole, Right Angle
  • Current Rating: 1A
  • Voltage Rating: 150V
  • Packaging: Tube
  • Fastening Type: Detent Lock
  • Connector Type: Header, Shrouded
  • Number of Walls: 4
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation Material: Polyamide
  • Status: Obsolete
