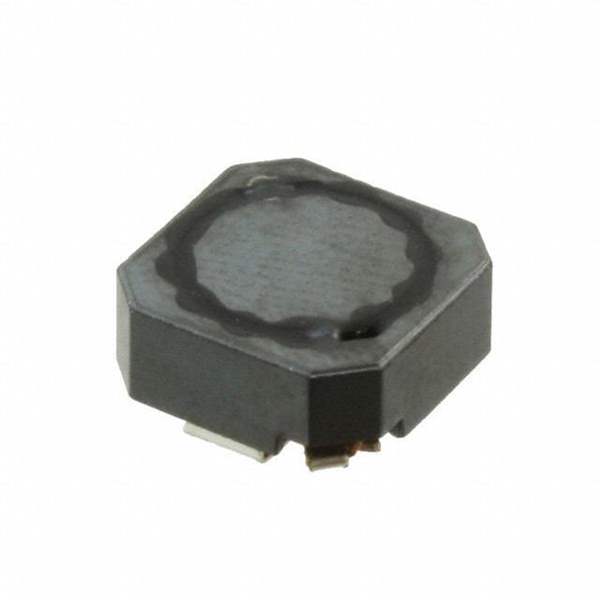

B82464G4154M000

Part No B82464G4154M000
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 150UH 850MA 320 MOHM / Inductor Power Shielded Wirewound 150uH 20% 100KHz Ferrite 0.85A 0.32Ohm DCR Automotive T/R
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Series B82464G4
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 150μH
Tolerance ±20%
Current Rating 850mA
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 320 mOhm Max
Frequency - Self Resonant 4.5MHz
Ratings AEC-Q200
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Maximum) 0.189" (4.80mm)
Win Source Part Number 769573-B82464G4154M000
Popularity Medium
Supply and Demand Status Balance
Family Name B82464G4
Introduction Date March 31, 2008
ECCN EAR99
Country of Origin China, Germany, Hungary
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B82464G4154M000 CAD Model

Description

The B82464G4154M000 is a wirewound type inductor manufactured by EPCOS (TDK).

  • Operating Temperature Range: -55°C ~ 150°C
  • Current Rating: 850mA
  • Shielding: Shielded
  • Inductance: 150μH
  • Tolerance: ±20%
  • Rating: AEC-Q200
  • DC Resistance: 320 mOhm Max
  • Package: Nonstandard
  • Dimension: 0.409" L x 0.409" W (10.40mm x 10.40mm)
  • Height seated maximum: 0.189" (4.80mm)
  • Material: Ferrite
  • Frequency-Self Resonant: 4.5MHz
  • Cross-Reference: GSRH105R-151M, ELLATP151MB, CSDB1005M151T, CD1-151
