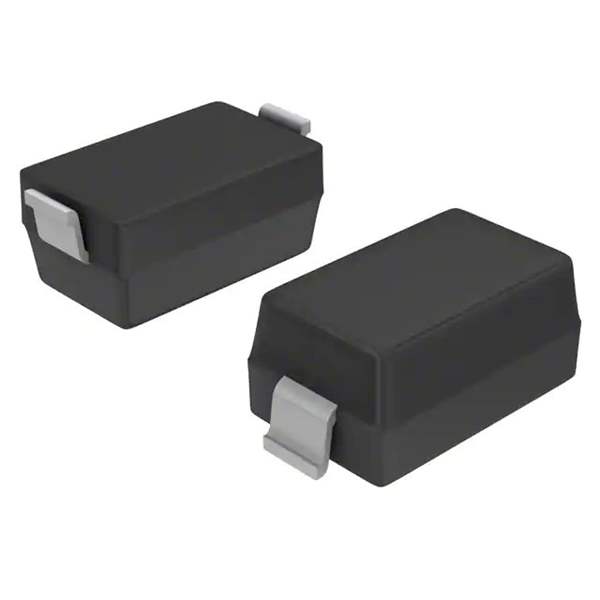

CDBM140L-HF Comchip Technology
Same model may have multiple batches, images only for reference.

CDBM140L-HF

Part No CDBM140L-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOT 40V 1A MINISMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 400 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 40 V
Capacitance @ Vr, F 130pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123T
Supplier Device Package Mini SMA/SOD-123
Operating Temperature - Junction -55°C ~ 100°C
Base Product Number CDBM140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367026-CDBM140L-HF
Ultra Librarian 3D Model Ultra Librarian CDBM140L-HF CAD Model

Description

The CDBM140L-HF is a Schottky diode from Comchip Technology.

  • Voltage Rating: 40V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 400mV @ 1A
  • Recovery Speed: Fast < 500ns
  • Minimum Current: 200mA
  • Reverse Leakage Current: 1mA @ 40V
  • Capacitance: 130pF @ 4V and 1MHz
  • Package: SOD-123T
  • Junction Temperature: -55°C to 100°C
  • Mounting Type: Surface Mount
