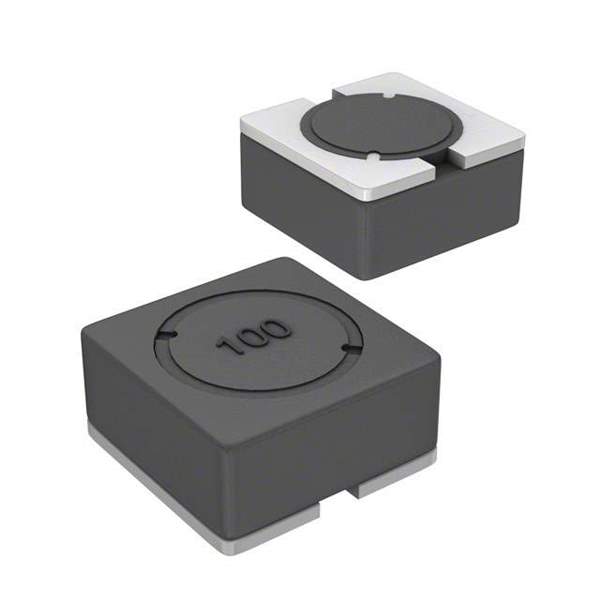

SRR5028-471Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-471Y

Part No SRR5028-471Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR5028-471Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5028
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±30%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 230mA
Shielding Shielded
DC Resistance (DCR) 2.5Ohm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
Other Names SRR5028-471Y,SRR5028-471YDKR,SRR5028-471YTR,SRR5028-471YCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273244-SRR5028-471Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-471Y CAD Model

Description

The SRR5028 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape & reel package.

  • Shielded: Yes
  • Inductance: 470 µH
  • Tolerance: ±30%
  • Material: Ferrite
  • Height: 0.118 inches (3.00mm)
  • DC Resistance (DCR): 2.5Ohm Max
  • Q @ Freq: 12 @ 796kHz
  • Frequency: 5MHz
  • Package/Case: Nonstandard
  • Current Rating: 300mA
  • Inductance Frequency Test: 100 kHz
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.228 inches L x 0.228 inches W (5.80mm x 5.80mm)
