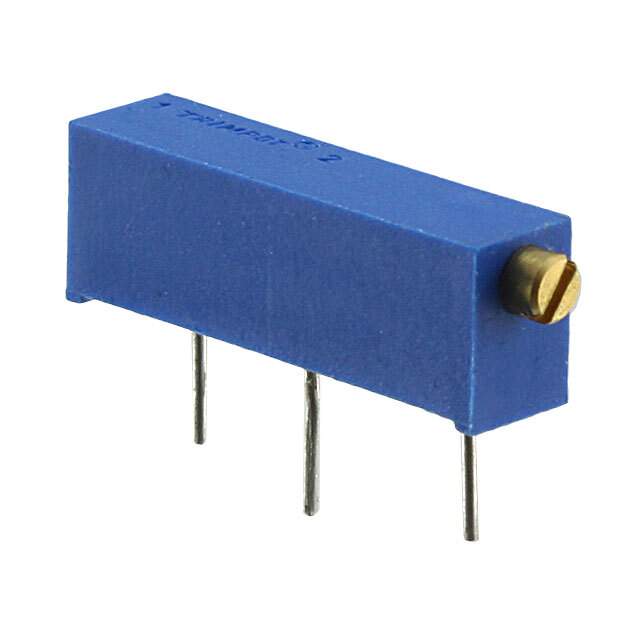

3006P-1-501LF Real Image 3006P-1-501LF Real Image
3006P-1-501LF Real Image 3006P-1-501LF Real Image
Same model may have multiple batches, images only for reference.

3006P-1-501LF

Part No 3006P-1-501LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.75W PC PIN
Datasheet
3006P-1-501LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3006 - Sealed
Packaging Tube
Resistance (Ohms) 500
Power (Watts) 0.75W, 3/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 15
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.250" x 0.190" Face x 0.750" L (6.35mm x 4.83mm x 19.05mm)
Win Source Part Number 763065-3006P-1-501LF
Popularity Medium
Supply and Demand Status Balance
Family Name 3006
Introduction Date March 28, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3006P-1-501LF CAD Model

Description

The Bourns Trimpot 3006 - Sealed series potentiometer is a through-hole component from Bourns.

  • Termination Style: PC Pins
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.75W or 3/4W
  • Resistance: 500 ohms
  • Turns: 15
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Dimension: 0.250" x 0.190" x 0.750" (6.35mm x 4.83mm x 19.05mm)
  • Family Name: 3006
  • Categories: Potentiometers and Variable Resistors
  • Halogen Free: Yes
